buzz at 4500 rpm: washer solution with pictures
« on: June 23, 2012, 07:49:03 AM »
This topic has been going on for a while and many asked me for pictures. So far I politely replied that I didn't want to undo any wizardry that my dealer did to my bike to stop that unbearable buzz at 4500 rpm. But now Jim intervened and threatened me with... well, he didn't threaten me  ;D but I though it was about time I looked at those washers. This forum has been a constant source of invaluable information and I thought it was about time I gave something back, so here it is:

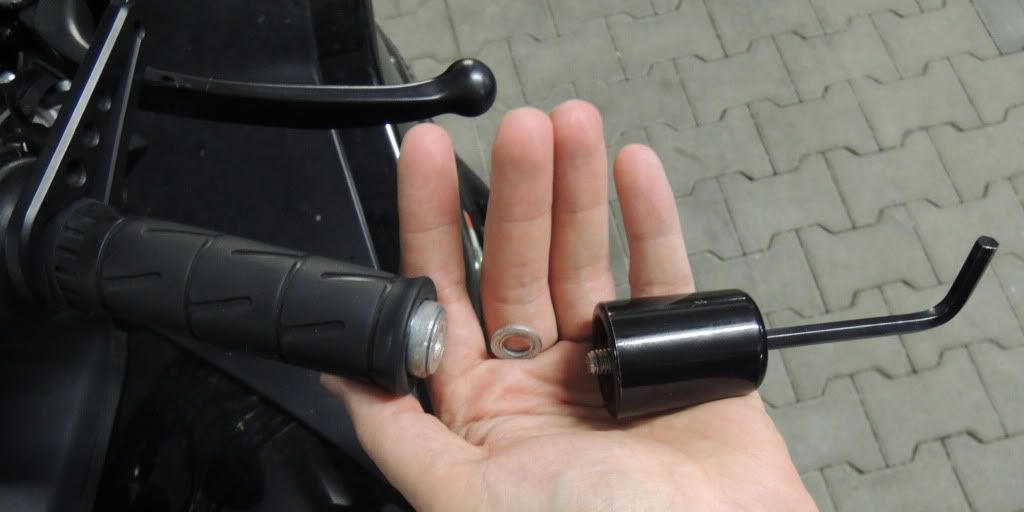

Taking the bar end weight...


Here it is the bar end with the washer...

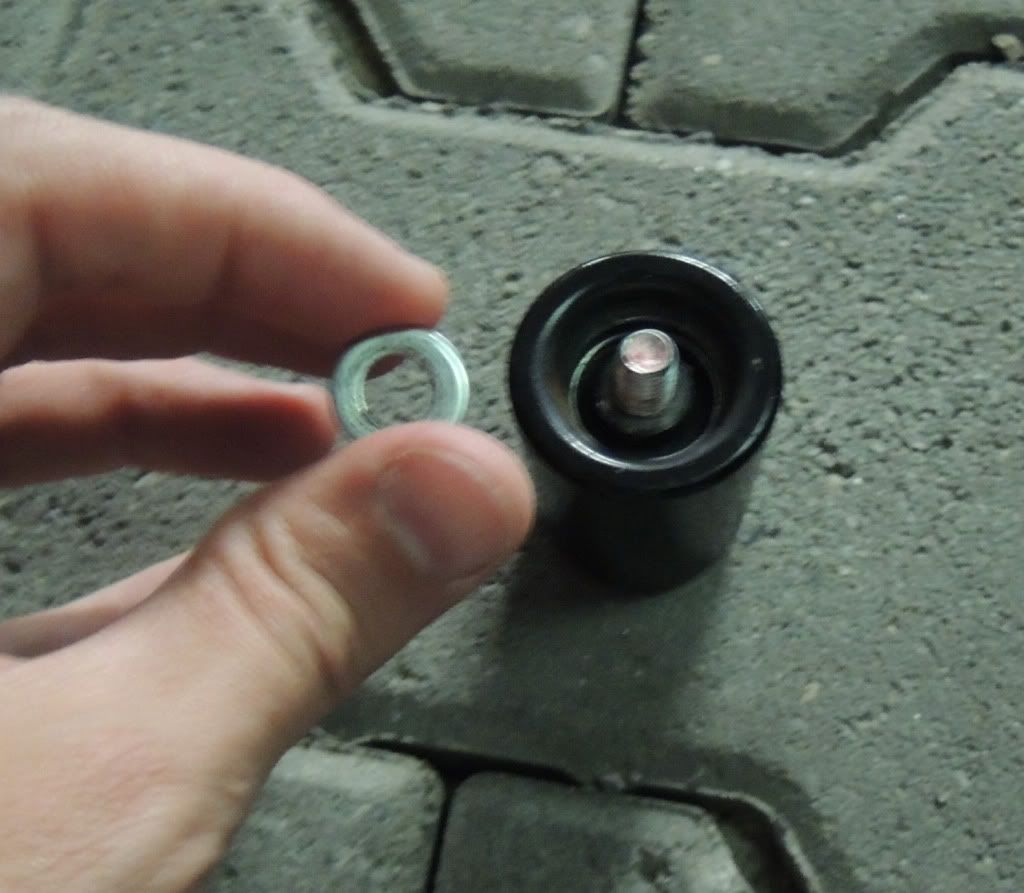

And the washer apart...

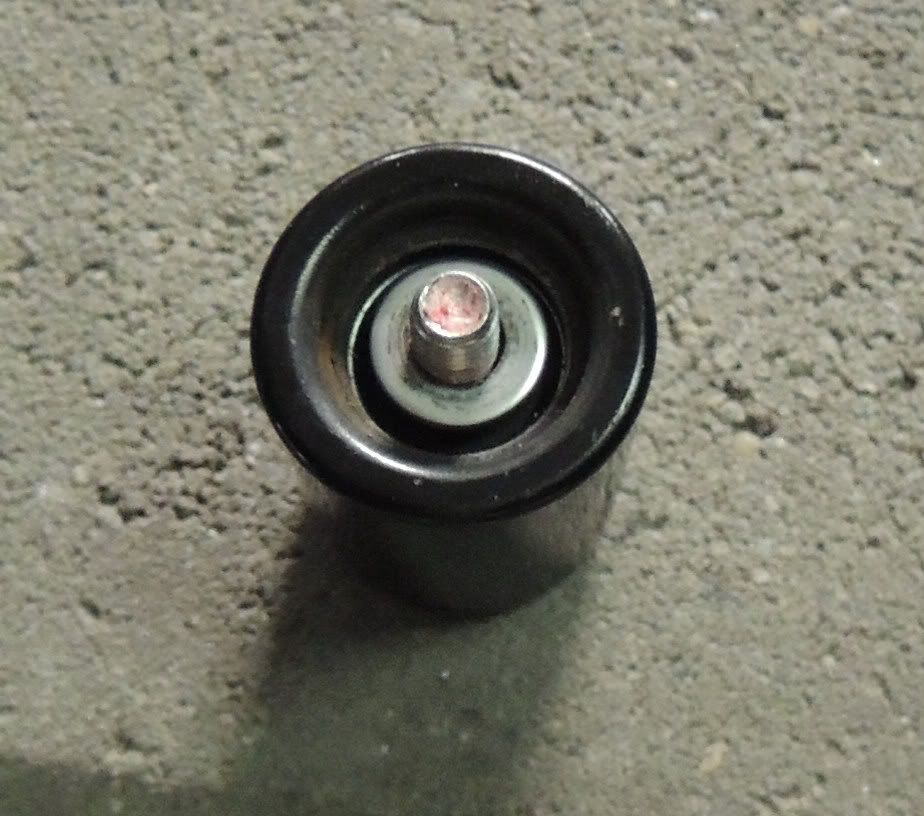

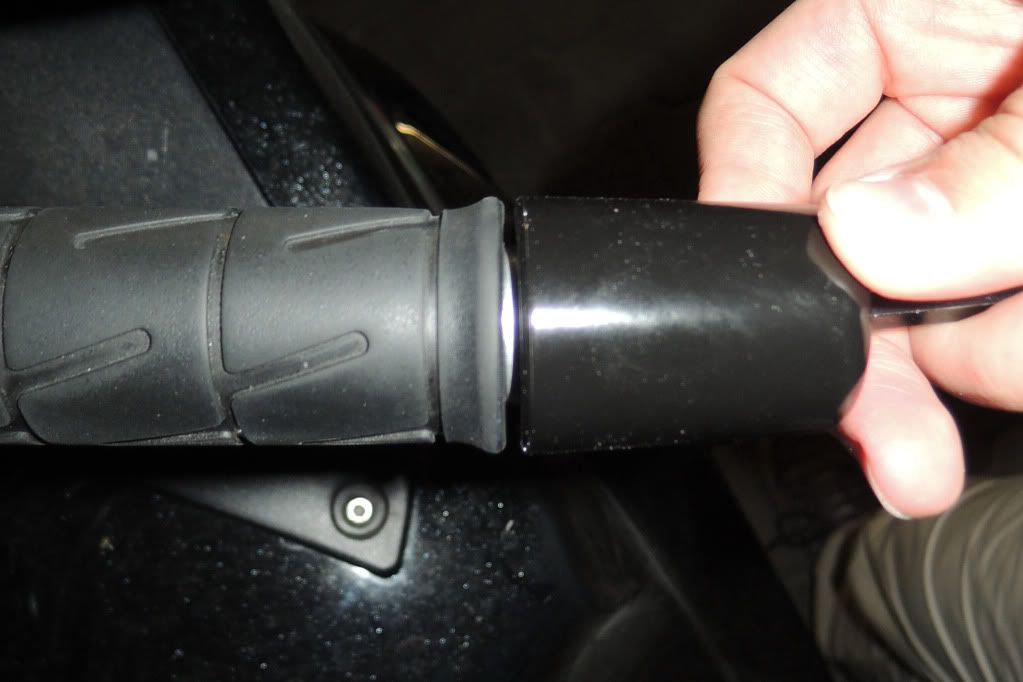

This is how it looks without washer...

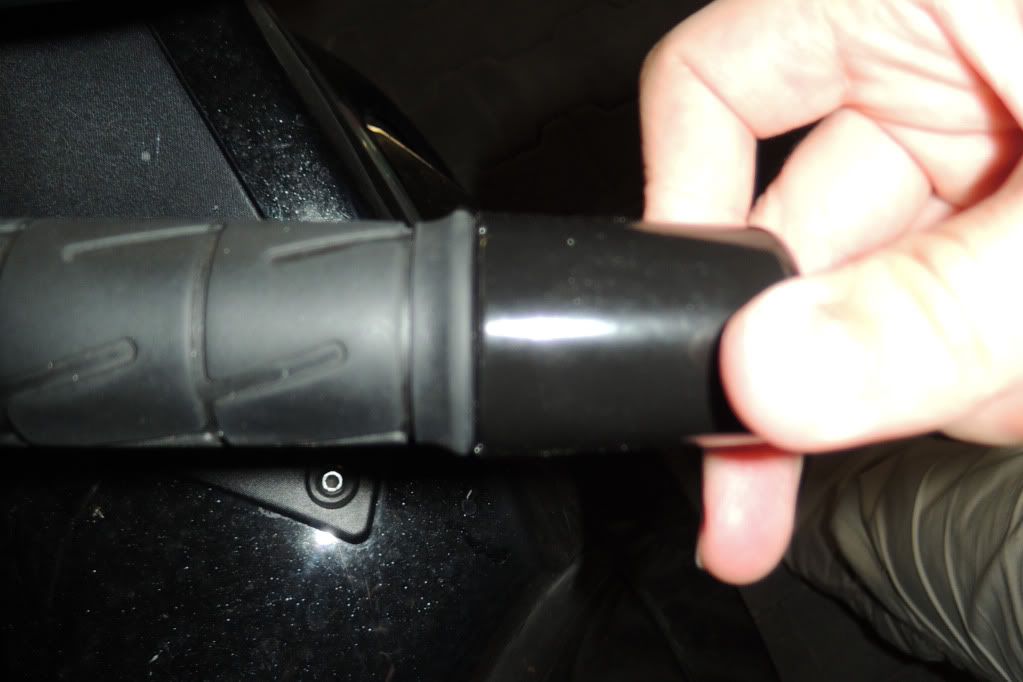

and this is how it looks with washer...


The washer is 1,5 mm thick.
I got an idea and assembled the bar end weight again without the washer and started the bike (I've been driving today, so the engine was warm). The buzz started at 3500 rpm and got worse at 4500, and everything seemed to fall into place again at 5500, running silk smooth at 6000 rpm and above.
Then I took the weight out, put the washer and screwed the weight back. Started the engine and sure enough, buzz is gone. I'd swear the bike got at least 10 HP more!  ;)
